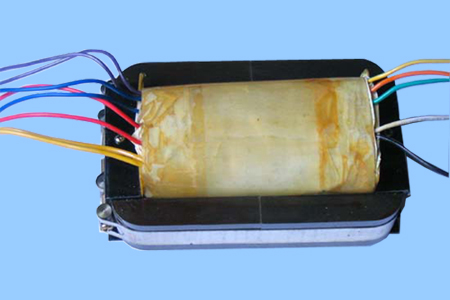

C-core Power Transformer Features:
*Coiled by silicon steel belt;
*Free formal size;
*Small cubage, high capacity.
Size Of Form And Installtion:
|
Model
|
Capacity( VA )
|
External Diminsion
L*W*H
|
|
PC-5
|
5VA
|
60X38X60
|
|
PC-10
|
10VA
|
60X68X72
|
|
PC-20
|
20VA
|
70X50X65
|
|
PC-30
|
30VA
|
70X50X84
|
|
PC-50
|
50VA
|
85X60X82
|
|
PC-100
|
100VA
|
85X60X106
|
|
PC-150
|
150VA
|
85X60X122
|
|
PC-200
|
200VA
|
110X80X110
|
|
PC-300
|
300VA
|
110X80X150
|
|
PC-500
|
500VA
|
145X95X143
|
|
PC-600
|
600VA
|
145X95X163
|
|
PC-800
|
800VA
|
145X95X183
|
|
PC-1000
|
1000VA
|
170X110X175
|
|
PC-1500
|
1500VA
|
170X110X240
|
